Description

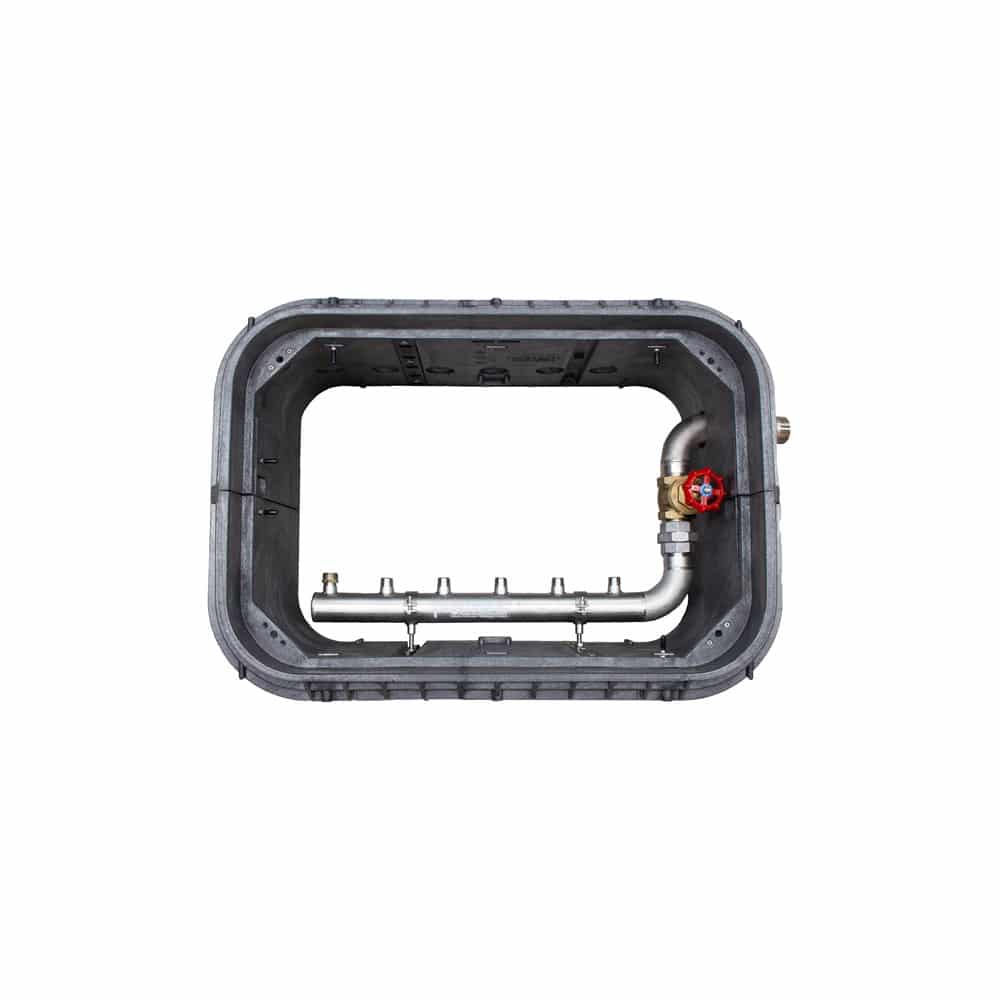

We offer a prebuilt configuration of Channell’s BULK4-14 to include a 6-way manifold. This configuration provides dedicated, compact vault solutions with an integrated 6-way water manifold for network distribution. Featuring a robust HDPE body and patented ribbed sidewalls, the unit is designed for strength, stability, and easy installation. The 6-way manifold ensures efficient water management across multiple outlets, while the anti-slip tread and non-seizing bolt system promote safety and easy maintenance. Ideal for potable water, irrigation, and utility applications.
Advantages
- Heavy-duty HDPE body
- Patented ribbed sidewall for stability
- Anti-slip tread and cover
- Factory-installed 6-way water manifold
- Non-seizing bolt system
- Compact, upgradeable design
Technical Details
- External Dimensions: 1026mm (L) x 731mm (W) x 355mm (D)
- Internal Dimensions: 903mm (L) x 610mm (W) x 280mm (D)
- Weight: 39kg (body and assembly)
- Load rating: Up to 33,750 lbf (150kN)
- Pre-configured with 6-way water manifold (20mm outlet standard, 25mm or 50mm inlet available)
Compliance
- AS3996 – Class C
- ANSI/SCTE 77 Tier 22
Applications
- Potable water, irrigation, and utility network installations.
