DBF2090

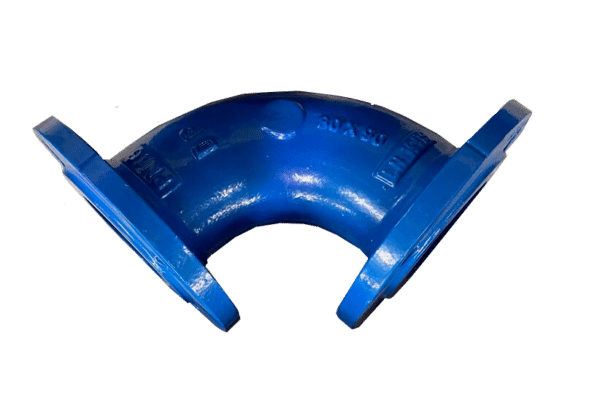

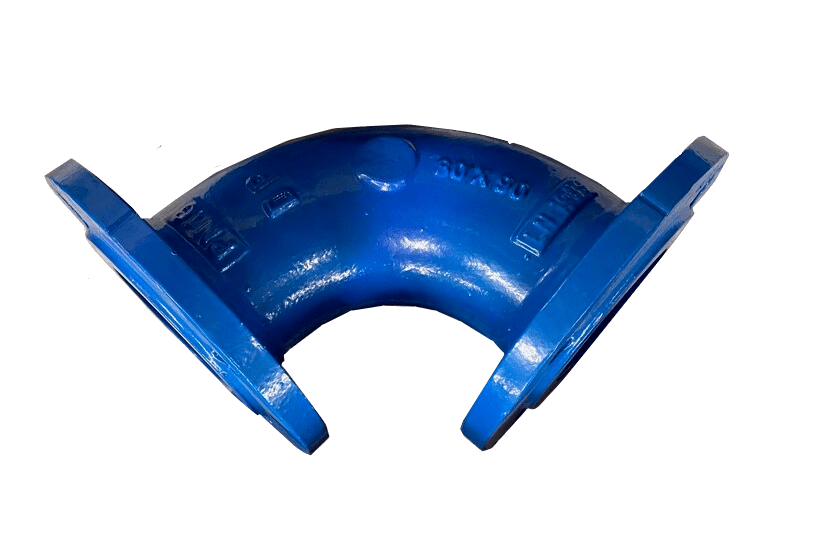

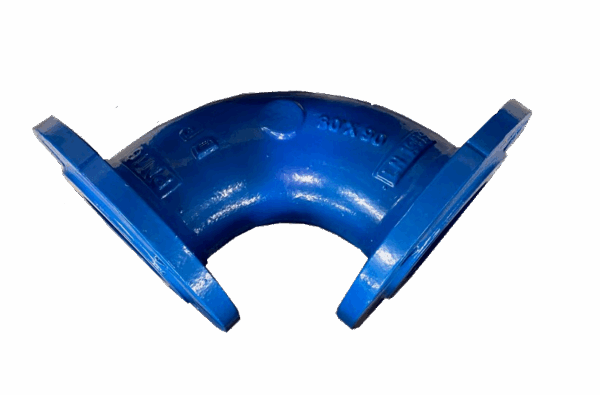

Daemco DI Flanged Bend DN200 x 90 deg

+
-
ADD TO QUOTE REQUEST

Description

Daemco’s Ductile Iron Flanged Bends offer quick installation, superb corrosion resistance, and high strength in a lightweight, impact-resistant design. With a PN16 pressure rating and a working temperature of 40°C, they're compatible with Series 1 or Series 2 pipe. Compliant with both Australian and New Zealand standards, these bends are suitable for above and below ground installations in potable water, recycled water, wastewater, fire, and irrigation applications.


Advantages

  • Quick and easy installation
  • Superb corrosion resistance
  • High strength
  • Lightweight
  • Impact resistant


Technical Details

  • Pressure: PN16
  • Temperature: 40°C
  • Pipe Material: Series 1 or Series 2 Pipe
  • Range: DN80 (90°), DN100-150 (11¼°, 22½°, 45°, 90°), DN200 (45°, 90°)


Compliance

  • AS/NZS 2280 (OMK30047 & WM-022892)
  • AS4158
  • AS/NZS 4020
  • AS/NZS 4087
  • WSAA PA 1805
