Description

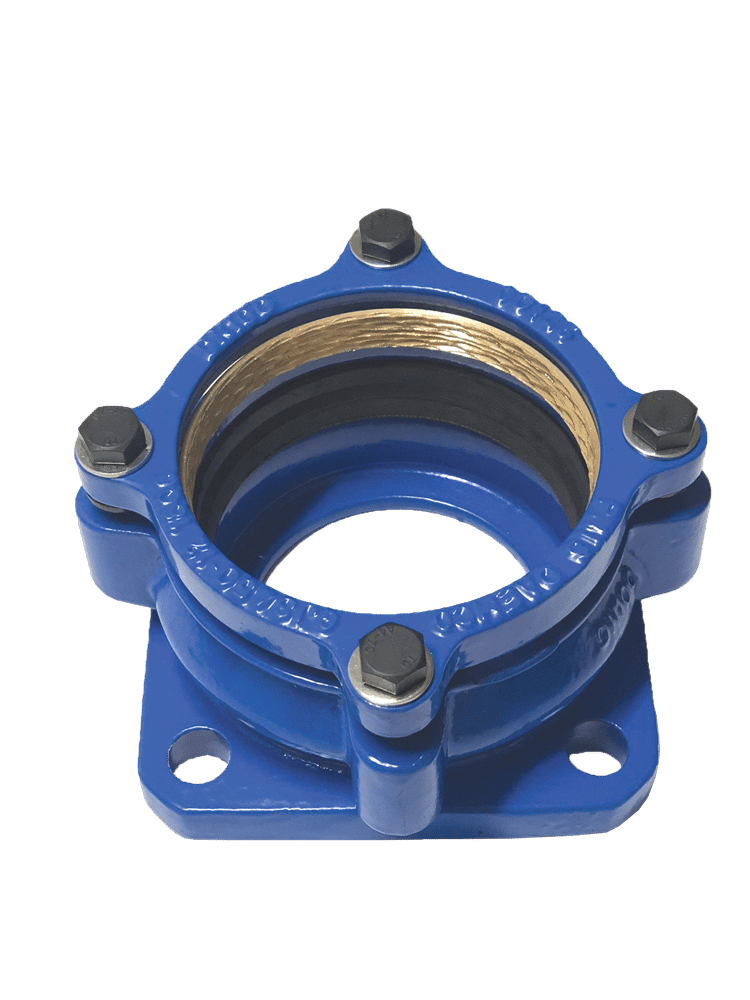

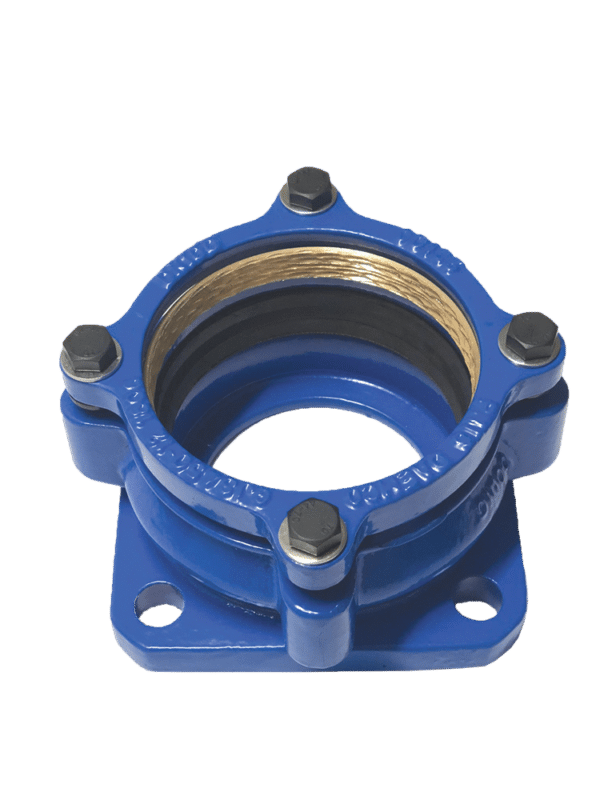

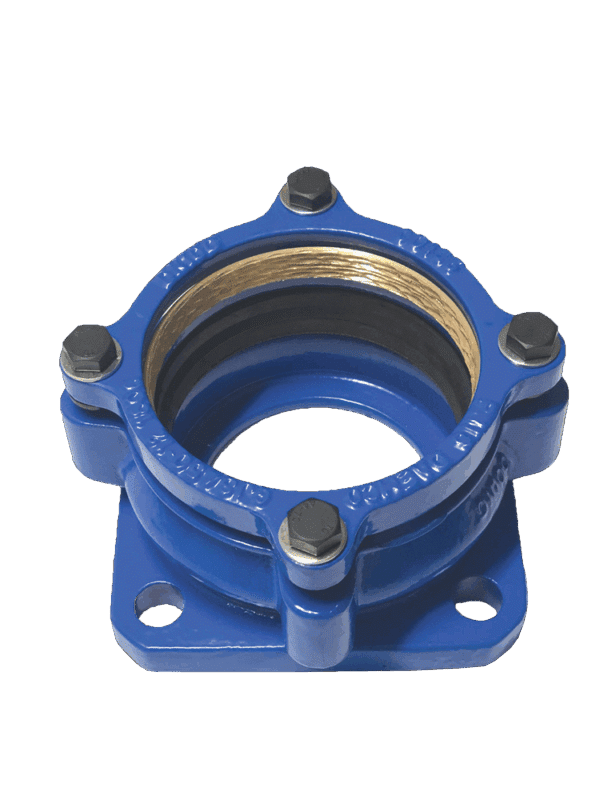

Daemco’s PE Restraint Flanged Adaptors are specialised components for use with polyethylene (PE) pipes in water and wastewater systems. These fittings provide a secure connection that resists PE pipes’ tendency to creep or pull out of joints when pressure or temperature changes. The flanged end allows for a transition between different pipe joining methods with a single fitting. Compliant with ISO, European, Australian, and New Zealand standards, these adaptors are suitable for above and below ground installations in potable water, recycled water, wastewater, fire, and irrigation applications.
Advantages
- Quick and easy installation
- Superior corrosion resistance
- High strength
- Lightweight
- Push-in socket joint
- Fully restrained connection
- Flanges compliant to AS/NZS 4087
Technical Details
- Pressure: PN10 to PN16 / SDR17 to SDR11
- Temperature: 40°C
- Pipe Material: Polyethylene (PE)
- Socket: Max 1.5° Deflection
- Range: DN90/80, DN125/100, DN180/150
Compliance
- ISO EN 12842 Licence OMK30063
- AS/NZS 4087
- WSAA PA 1624
