Description

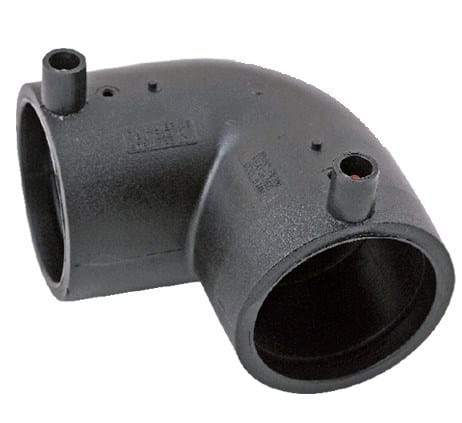

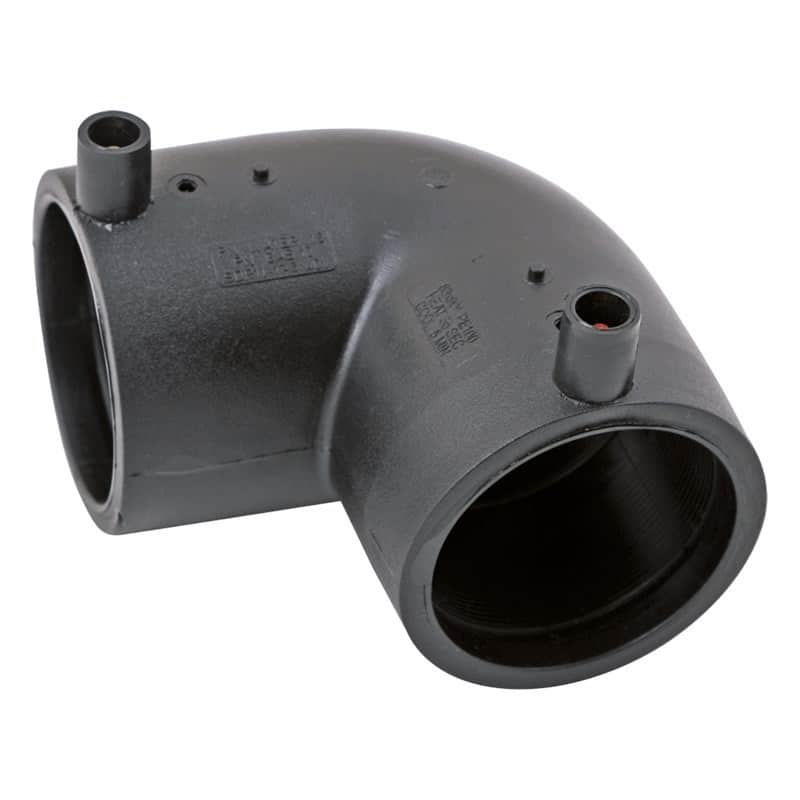

Fusion's Electrofusion 90° Elbows offer a high-quality, reliable solution for creating right-angle connections in fully welded pipe networks. Manufactured from virgin PE100 black polyethylene, these elbows feature a Fusamatic 4.00mm pin system for automatic welding parameter selection, ensuring precise and consistent installations. Rated for both water (PN16) and gas (10 bar) applications, they operate effectively within a temperature range of -10°C to +40°C.
Available in sizes from 20mm to 250mm, these elbows are designed for various piping applications, including water, gas, wastewater, irrigation, and mining. Each fitting has a permanent batch number for clear quality control and ISO-compliant barcodes for welding (ISO 13950) and traceability (ISO 12176-4).
These fittings comply with multiple international standards, including EN ISO 15494, EN 12201-3, EN 1555-3, ISO 4437-3, and ISO 4427-3, ensuring their suitability for a wide range of applications and regulatory environments. The combination of robust material, precise manufacturing, and comprehensive certifications makes Fusion's Electrofusion Elbows an excellent choice for creating secure, long-lasting angular connections in polyethylene piping systems.
Advantages
- Reliable with high production quality
- Permanent batch number for clear quality control
- Create fully welded pipe networks
- Welding barcode compliant with ISO 13950 and traceability barcode compliant with ISO 12176-4
Technical Details
- Pressure: Water (PN16), Gas (10 bar)
- Pin Specification: Fusamatic pin 4.00mm (Automatic method to ensure correct welding parameters)
- Temperature Range: -10°C to +40°C
- Welding Temperature: -10°C to +40°C (When using Fusamatic EF systems)
- Material: All fittings are made from virgin PE100 black polyethylene
- Range: 20mm-250mm (90°)
Compliance
- EN ISO 15494
- EN 12201-3
- EN 1555-3
- ISO 4437-3
- ISO 4427-3
