Description

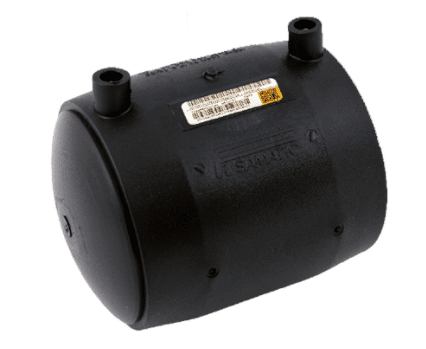

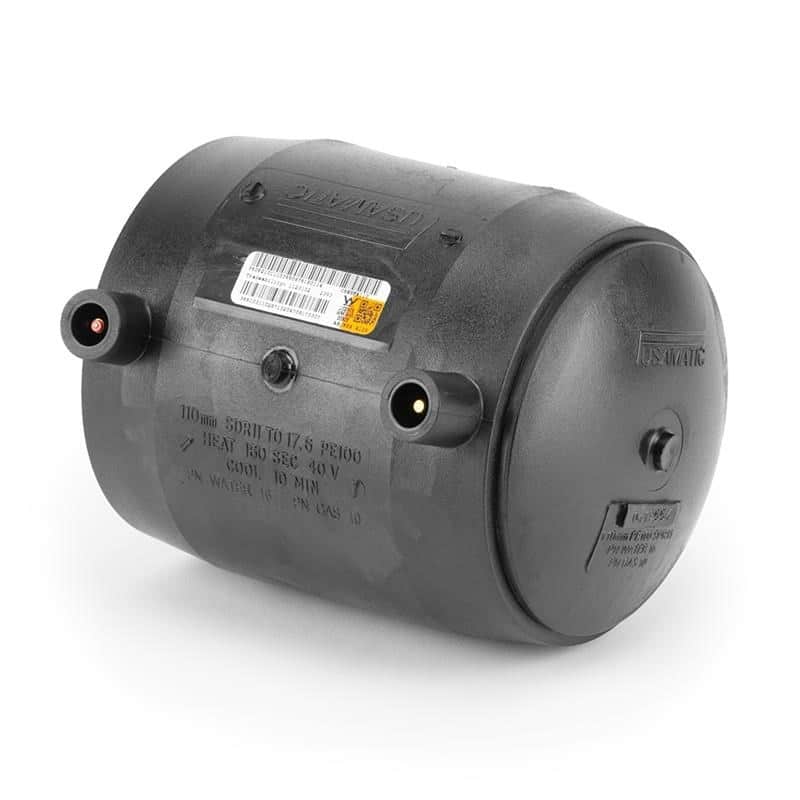

Fusion's electrofusion (EF) end cap range offers a reliable and high-quality solution for closing off polyethylene pipe networks. Manufactured from virgin PE100 black polyethylene, these end caps feature a Fusamatic 4.00mm pin for automatic welding parameter selection, ensuring precise installation. Rated for water (PN16) and gas (10 bar) applications, they operate within a temperature range of -10°C to +40°C.
Each end cap has a permanent batch number for clear quality control and ISO-compliant barcodes for welding and traceability. The range complies with multiple international standards, including EN ISO 15494, EN 12201-3, EN 1555-3, ISO 4437-3, and ISO 4427-3. These advantages make Fusion's EF End Caps an excellent choice for creating secure, fully welded pipe network terminations across various applications.
Advantages
- Reliable with high production quality
- Permanent batch number for clear quality control
- Create fully welded pipe networks
- Welding barcode compliant with ISO 13950 and traceability barcode compliant with ISO 12176-4
Technical Details
- Pressure: Water (PN16), Gas (10 bar)
- Pin Specification: Fusamatic pin 4.00mm (Automatic method to ensure correct welding parameters)
- Temperature Range: -10°C to +40°C
- Welding Temperature: -10°C to +40°C (When using Fusamatic EF systems)
- Material: All fittings are made from virgin PE100 black polyethylene
Compliance
- EN ISO 15494
- EN 12201-3
- EN 1555-3
- ISO 4437-3
- ISO 4427-3
