EFT75

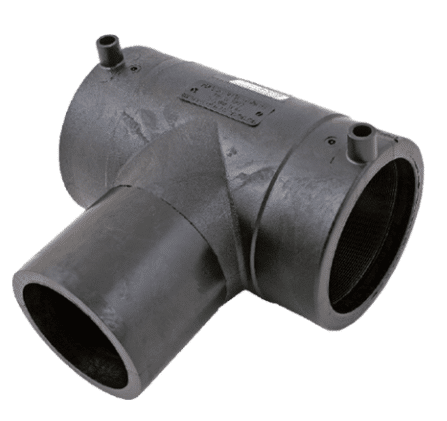

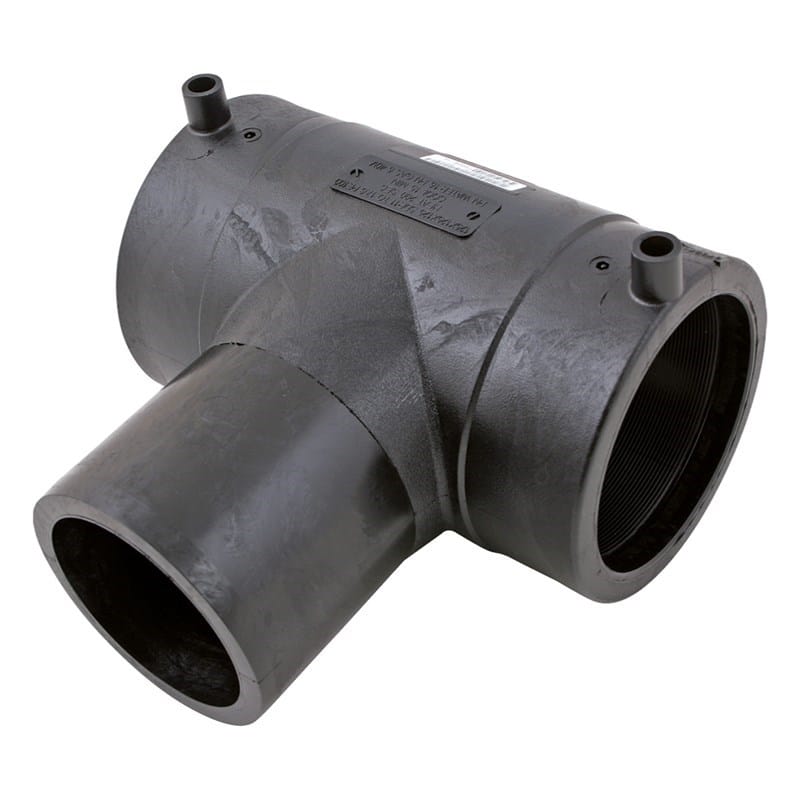

Fusion EF Equal Tee 75OD SDR11/17

+
-
ADD TO QUOTE REQUEST

Description

Fusion's Electrofusion Equal Tees provide a high-quality, reliable solution for creating branch connections in fully welded pipe networks. Manufactured from virgin PE100 black polyethylene, these tees incorporate a Fusamatic 4.00mm pin system for automatic welding parameter selection, ensuring precise and consistent installations. Rated for both water (PN16) and gas (10 bar) applications, they operate effectively within a temperature range of -10°C to +40°C.


Each tee features a permanent batch number for clear quality control and ISO-compliant barcodes for welding and traceability. The Equal Tees comply with multiple international standards, including EN ISO 15494, EN 12201-3, EN 1555-3, ISO 4437-3, and ISO 4427-3. These features make Fusion's Electrofusion Equal Tees an excellent choice for creating secure, three-way connections in water, gas, wastewater, irrigation, and mining.


Advantages

  • Reliable with high production quality
  • Permanent batch number for clear quality control
  • Create fully welded pipe networks
  • Welding barcode compliant with ISO 13950 and traceability barcode compliant with ISO 12176-4


Technical Details

  • Pressure: Water (PN16), Gas (10 bar)
  • Pin Specification: Fusamatic pin 4.00mm (Automatic method to ensure correct welding parameters)
  • Temperature Range: -10°C to +40°C
  • Welding Temperature: -10°C to +40°C (When using Fusamatic EF systems)
  • Material: All fittings are made from virgin PE100 black polyethylene


Compliance

  • EN ISO 15494
  • EN 12201-3
  • EN  1555-3
  • ISO 4437-3
  • ISO 4427-3
