EFTFA2520

Fusion Female Transition Adaptor Brass 25OD x 20mm BSP

+
-
ADD TO QUOTE REQUEST

Description

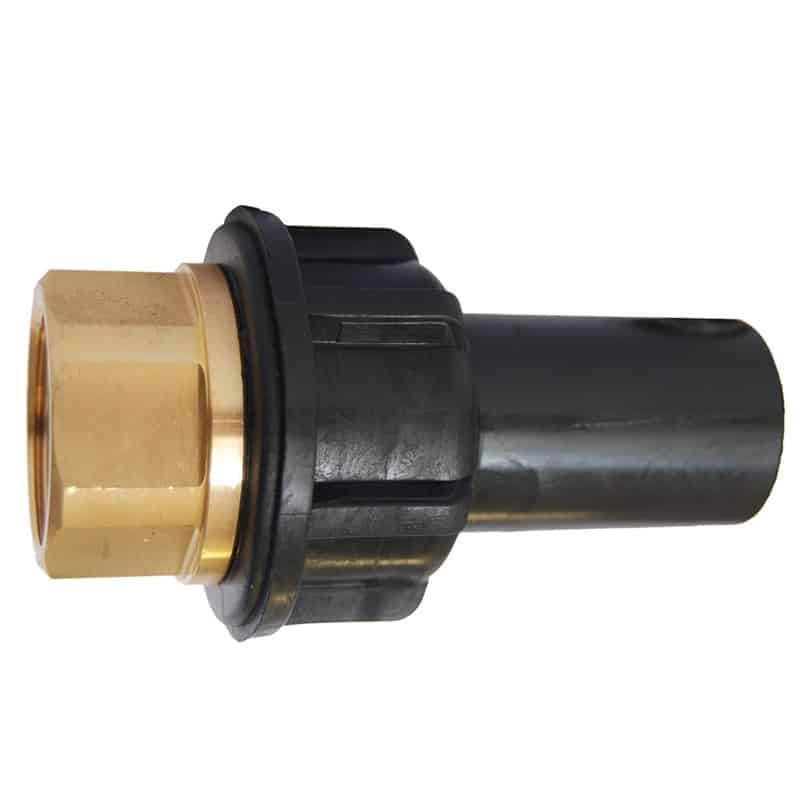

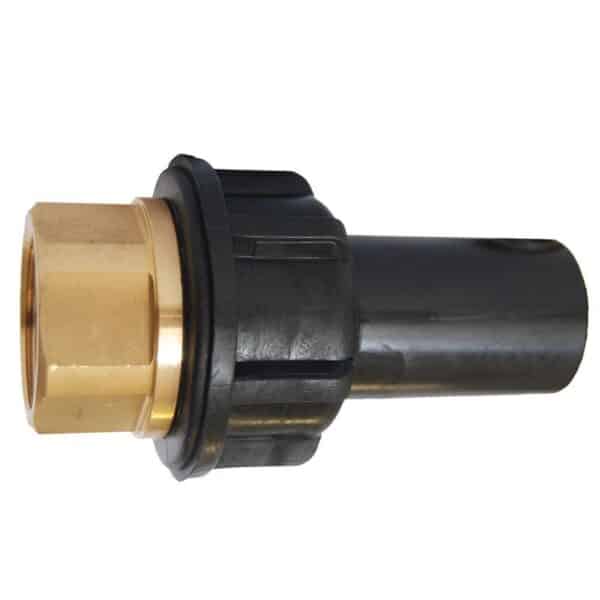

Fusion's Female Transition Adaptor Brass offers a high-quality solution for connecting metallic pipes to polyethylene (PE) pipe systems. Made from virgin PE100 polyethylene with a CW617N/CW511L brass threaded end, this adaptor provides a reliable and efficient transition between different pipe materials.


The adaptor features a BSPP thread, allowing for seamless connections between metric and imperial threaded systems. This versatility makes it an ideal choice for various applications, including water distribution (PN16) and gas networks (10 bar). The fitting operates effectively within a temperature range of -10°C to +40°C, with the same range applicable for electrofusion jointing when using Fusamatic EF systems.


Compliant with EN 12201-3 and EN 1555-3 standards, Fusion's Transition Adaptor Male Threaded Stainless Steel meets industry requirements for both water and gas applications.


Advantages

  • Reliable with high production quality
  • Easy connection from metallic pipe to PE pipe
  • BSPP thread allows for metric to threaded imperial connections
  • Quick way to connect various type of metallic pipes to PE pipe systems


Technical Details

  • Pressure: Water (PN16), Gas (10 bar)
  • Temperature Range: -10°C to +40°C
  • Electrofusion Jointing Temperature: -10°C to +40°C (When using Fusamatic EF systems)
  • Material: All fittings are made from virgin PE100 Polyethylene
  • Brass: CW617N/CW511L
  • Thread: BSPP


Compliance

  • EN 12201-3
  • EN 1555-3
  • 4MS Compliant Brass Grades
