Description

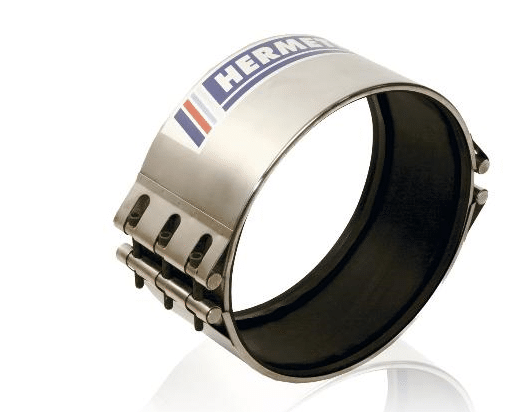

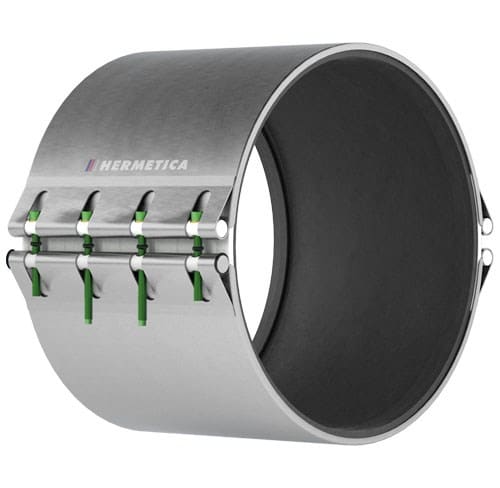

Hermetica’s Series 40 Repair Clamps provide a rapid, reliable solution for resolving large leakages in pipelines, eliminating the need to replace damaged pipe sections. Uniquely designed with a 300mm usable width, series 40 is the only clamp in its class to offer this level of coverage, making it ideal for emergency repairs where warranty, reliability and cost savings are essential.
Manufactured from high-quality stainless steel (AISI 304L/316L), these clamps feature Hermetica’s exclusive HOLD-ON and PILOTO technologies for secure, easy installation under pressure. Compatible with pipe diameters from 300mm to 4000mm and suitable for a wide range of pipe materials, Series 40 is engineered for exceptional maintenance needs.
Advantages
- Fast and easy installation under pressure
- Superior corrosion resistance (AISI 304/316L stainless steel)
- Unique 300mm usable width for large leak coverage
- HOLD-ON and PILOTO technologies for secure, precise installation
- Compatible with a wide range of pipe materials
- Low maintenance and long service life
Technical Details
- Pressure: PN10/16 (up to 16 bar, depending on diameter)
- Temperature: Suitable for potable water applications
- Pipe diameter range: DN300-DN4000
- Usable width: 300mm
- Total width: 380mm
- Construction: Stainless steel AISI 304L/316L, EPDM gasket
Compliance
- EN 681-1 (WA)
- WRAS
- ISO 9001
- ISO 14001
