Description

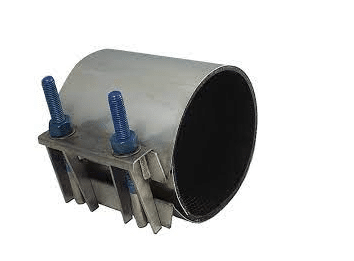

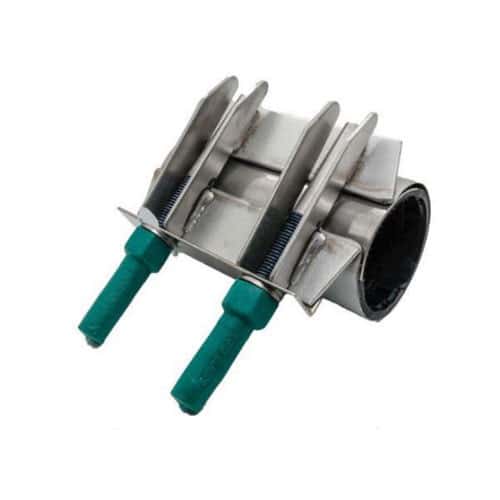

The Rapids CR pipe repair clamp has been utilized for more than 30 years across various industries and nations. The Rapid CR clamps offer a lasting and economical solution for pipe repairs. They are available for pipe diameters ranging from 40mm to 2000mm, with clamp lengths varying from 150mm to 600mm.
- Locking Washer Plate: Stainless Steel Type 316. Locks into position for easy tightening of nuts.
- Lugs: Stainless Steel Type 316. MIG-welded to receiver bar and fully passivized after welding. Leading edge is rounded to prevent them from catching bolt bars during installation.
- Shell: Stainless Steel Type 316. 2B finish. Fully passivized after welding.
- Bolts: Stainless Steel Type 316. Thread-rolled for strength and coated to prevent galling. Bolts are MIG-welded to the receiver bar and fully passivized after welding.
- Nuts/Washers: Stainless Steel Type 316
- Receiver Bars: Stainless Steel Type 316. TIG-welded to shell to form a strong fusion and fully passivized after welding.
- Gasket: Nitrile rubber is specially formulated for water service, gas and oil. Incorporating antioxidant agents to increase shelf life. All gaskets have a gridded design, tapered ends and vulcanized armour plates for easy installation and optimum sealing efficiency.
- Max Operating Pressure: 1600kPa (PN16)
- Temperature Range: 0°C – 60°C
