Description

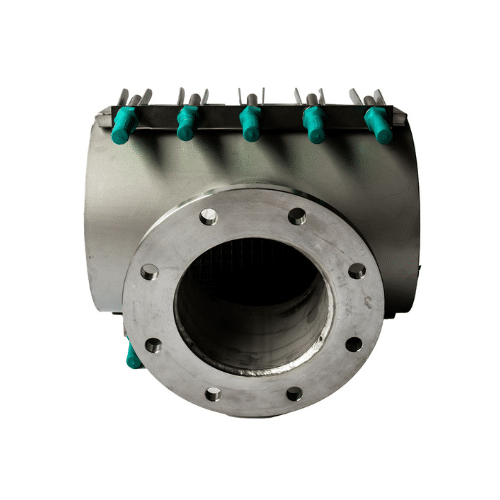

Rapids CF clamps offer a reliable full circumference clamping solution for branch connections that require a flange off-take on an existing pipe. CF clamps incorporate the same design as Rapids CR repair clamps, with the added feature of a flange socket.
- Locking Washer Plate: Stainless Steel Type 316. Locks into position for easy tightening of nuts.
- Lugs: Stainless Steel Type 316. MIG-welded to receiver bar and fully passivized after welding. Leading edge is rounded to prevent them from catching bolt bars during installation.
- Shell: Stainless Steel Type 316. 2B finish. Fully passivized after welding.
- Bolts: Stainless Steel Type 316. Thread-rolled for strength and coated to prevent galling. Bolts are MIG-welded to the receiver bar and fully passivized after welding.
- Nuts/Washers: Stainless Steel Type 316
- Receiver Bars: Stainless Steel Type 316. TIG-welded to shell to form a strong fusion and fully passivized after welding.
- Gasket: Nitrile rubber is specially formulated for water service, gas and oil. Incorporating antioxidant agents to increase shelf life. All gaskets have a gridded design, tapered ends and vulcanized armour plates for easy installation and optimum sealing efficiency.
- Armour: Stainless steel Type 316. Vulcanized into the gasket at the time of moulding.
- Tappings: Stainless steel Type 316. AS/NZS 4087, drilled to table ‘D’.
- Max Operating Pressure: 1600kPa (PN16)
- Temperature Range: 0°C – 60°C
